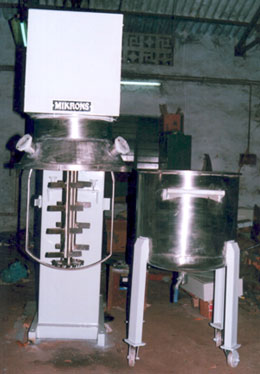

MIKRONS Hydro Mixer


In case of applications that requires both blending & dispersion in a single machine the answer is Hydro-Mix Planetary Mixer with Triple impeller design the mixer serves as an answer to all the mixing problems faced by applications handling thick and very high viscous pastes.

The triple impeller design includes one a high shear impeller with toothed blade for shearing action, and turbine impeller for homogenous mixing.

In some applications, a scaper blade can also be added.

This kind of unique design ensures complete mass movement within the process vessel while the high shear impeller enables quick, efficient high shear operation.





Capacity Table

Model

Total
Volume
Liter

Main Motor
hp

Dissolver
hp

Elevating
Mechanism
hp

Approx.
Weight
kg

DPL6

6

1

-

manual

200

DPL30

30

3

3

manual

500

DPL50

50

5.5

5.5

1

950

DPL100

100

7.5

10

1

1350

DPL200

200

10

15

1.5

1600

DPL300

300

15

15

1.5

1800

DPL500

500

20

20

1.5

3100

DPL750

750

30

25

2

7000

DPL1000

1000

40

30

2

7500
